Industrial Dust Collector Nomex Air Filter Bag For Asphalt Plant
baghouse

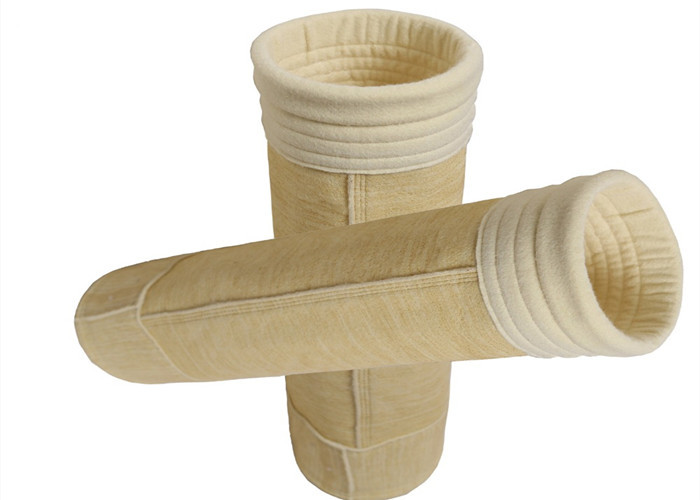

Nomex Anti - Acid Filter Bag
We select Dupont Nomex Filter Fiber to produce the Nomex high
temperature needle felt , it is the best filter material for high
temperature fume / dust / ash, for steel plant, asphalt mixing,
other metal industries .
The characteristics of nomex filter needle felt: High temperature
(204~ 240 degree), anti -acid, anti-alkali, high filtration
precision, blow speed, low pressure drop, anti -break, anti
-abrasion, mostly applied in pitch mix gas, blast furnace gas in
steel factory, tail gas of white char, kiln applications, electric
cooker high temperature gas.
The normal specification of Nomex Filtration Felt :
400 gsm , 450 gsm , 500 gsm , 550 gsm , 600 gsm ,
Threatment : PTFE coating, PTFE membrane, Water and oil repellemnt
treatment .
Although we can tailor produce the size of Nomex Filter Bag for
different Model of dust collector , there is normal size as
following :
| Applied industry ( Bag Filter system ) | Diameter (mm ) | Length (mm) |
| Asphalt mixing Plant | 130 | 2500 |
| Metal smelting furnace | 160 | 3000 |
| Steel Mill ( sintering machine , blast furanmce ) | 160 | 6000 |
| Tobacco drying system | 130 | 3600 |
| Aluminum / leads scrap melting furnace | 160 | 3600 |
Product Paramenters
| Fiber Composition |
Polyester | Polyester (PET) with PTFE membrane |
PTFE |
P84 |
PPS |
Nomex |
| Weight (g/m2) | 500 | 500 | 750-800 | 500 | 500-550 | 450-600 |
| Thickness (mm) | 1.7-2.0 | 1.7-2.0 | 1.2-1.6 | 2.1 | 1.8-2.0 | 1.9-2.4 |
| Running Temperature (°C) | 130 | 130 | 240 | 180 | 160 | 200 |
| Peak Temperature (°C) | 150 | 150 | 260 | 260 | 190 | 240 |
Air Permeability
(M3/M2.S. 200Pa) | 8-12 | 8-12 | 5-8 | 14 | 15 | 8-12 |
| Mechanical Finish | Singeing, calendaring, heat-set | Singeing,calendaring | Heat-set and Singed one side | Singeing | Singring coating Heat-set | Singeing |
| Chemical Finish | membrane | PTFE/Teflon coated anti-static Water and oil repellent
| PTFE impregnated peritoneal | | | PTFE coating, membrane |
| Warp Of Stretch Strength | 800 | 1000 | 600 | 900 | 900 | 900 |
| Welf Of Stretch Strength | 1200 | 1300 | 800 | 1200 | 1200 | 1200 |
| Resistance to Acid | Medial | Fair | Excellent | Excellen | Excellent | Fair |
| Resistance to Oxidation | Excellent | Good | Excellent | Excellent | Poor | Fair |
| Resistance to Alkali | Medial | Poor | Excellent | Excellent | Excellent | Good |
| Resistance to Hydrolysis | Medial | Poor | Excellent | Excellent | Excellent | Fair |
| Application | 1) The fume and smoke treatment and particle removing system in
metallurgy plant 2) Smoke filtration in garbage burning, coal-feed boiler,power
plant
3) Asphalt concrete mixture, cements, chemical,ceramics, building
materials 4) Dust treatment, purification and collection in electronics,
mining, flour and timber processing |
| Size | Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192'' |
| Filter Bag Top Construction | 1) Side Load: raw edge top (3” longer than split collar cage
length)
2) Top Load: snap band/ring ; double beaded |
| Bottom Construction | 1) Single-ply felted disc bottom 2) 3” bottom; double-ply wearguard 3) 5” wear cuff with 2” overhang below bag disc bottomBottom
Construction |
