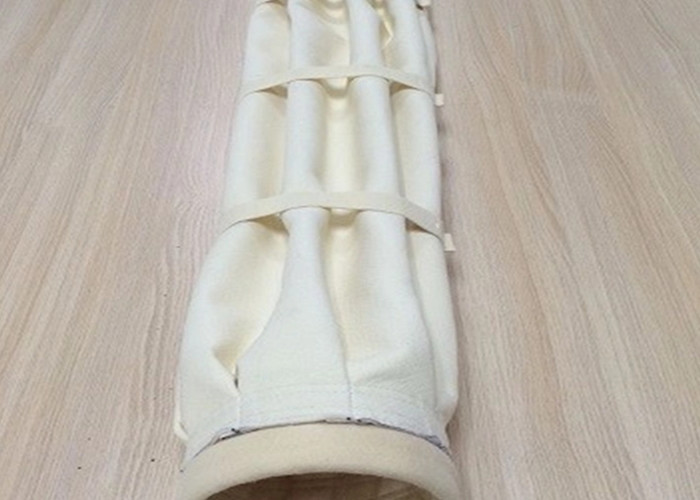

Factory sell star shape polyester filter bag pleated dust collector
filter bag
After the anti-static bag conductive yarn implanted in the filter
material or mixed with conductive fibers, stainless steel fibers,
antistatic filter function can be used for static, explosive and
flammable dust flue gas filtration. General industrial dust
concentration reaches a certain level after (ie explosive limit) in
case of electrostatic discharge spark or outside ignition and other
factors, could easily lead to fires and explosions, such as:
surface dust, chemical dust, coal dust, etc. In case of
electrostatic discharge We have a possibility of an explosion. In
the bag filter fields, such as those required bags to collect dust,
the dust bag requires the processing of media with anti-static
properties, during use, to release gas and dust accumulated on the
filter surface charge to prevent charge-discharge sparks cause an
explosion.
Application:
1, coal mill system dust (cement, power plants, etc.)
2, coking plant coke, coal preparation system Dust
3, wood dust removal equipment factory
4, powder equipment
| No. | Name | Unit | Parameter | |
| 1 | Fibrous layer | | Polyester or antistatic fiber | |
| 2 | Base cloth | | Anti-static cloth | |
| 3 | Weight | g/m2 | 500 | |
| 4 | Thickness | M3/m2.min | 1.8 | |
| 5 | Ventilation amount | M3/m2.min | ≥15 | |
| 6 | Longitudinal fracture strength | N/5*20cm | ≥900 | |
| 7 | Transverse rupture strength | N/5*20cm | ≥1200 | |
| 8 | Long-term use temperature | ℃ | Above the dew point temperature below 130 ℃ | |
| 9 | Short-term temperature |
℃ | 150 | 150 each no more than 10min |
| 14 |
Surface nuclear power density |
MC/m2 |
3.4 | |
| 15 | half life | S | 0.75 | |
| 16 |
After-treatment | | | Singeing, calendering, heat setting, PTFE emulsion impregnated
embalme |
