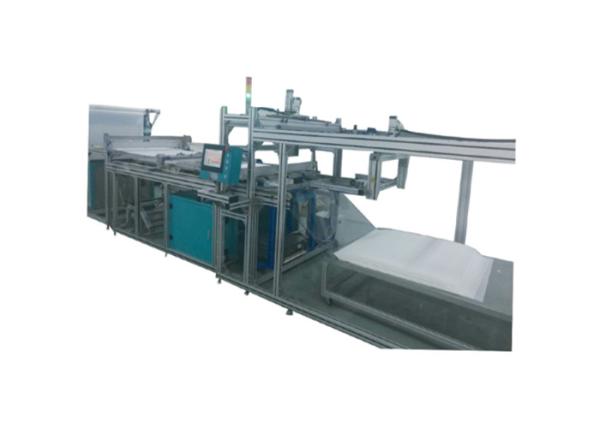

tricot cutting & welding machine
Basic functions:
1. Automatic unwinding and cutting machine adopts magnetic powder
braking technology, so as to keep constant tension to ensure the
accuracy of cutting when unwinding.
2. Intelligent control with PLC program can be adjusted according
to requirements. Mitsubishi PLC intelligent control system has
stable performance and can adjust cutting width and specifications
arbitrarily.
3. Dynamic cutting mechanism: using German imported rodless
cylinder to drive blade cutting, high efficiency, no dust;
4. Multi-page guide cloth can be positioned automatically and
welded automatically. The welding accuracy can be controlled within
(+0.5 mm).
5. Automatic cutting and unexpected alarm: The machine realizes
automatic stacking and cutting of the guide cloth. The unexpected
automatic alarm does not need personnel to guard, and can be
inspected regularly.
6. The system has its own fault detection function: when a fault
occurs, the monitor status of the display screen can prompt the
fault point, which is convenient for rapid maintenance.
Main configurations:
Servo Motor/Motor Matsushita/Mitsubishi, Japan
Magnetic Powder Brake Chuying
PLC Mitsubishi, Japan
Touch Screen
Inflation Axis Shanghai
Cylinder SMC of Japan
Cutter blade imported alloy steel
Bearing
Low Voltage Electrical Appliances Schneider, Germany
Ultrasound Module Special Customization
Equipment parameters:
Rewinding maximum diameter 800mm
Mandrel size 3“
Maximum traction length of diversion cloth 1500mm
Maximum production speed 4-6 sheets/m
Scope of application: diversion cloth
Gas source working pressure (MPa) 0.6-0.8 MPa
Working power supply 220V 50Hz
Total power of the equipment is about 3.5KW
Ultrasound welding method
Welding Drive Mode: Servo Motor + Cylinder
Welding Accuracy (+0.5mm)
Cutting accuracy (+0.5mm)
The weight of the machine is about 1.5T.
The exterior dimension of the whole machine is 3470*1820*1262 mm
(length*width*height)
