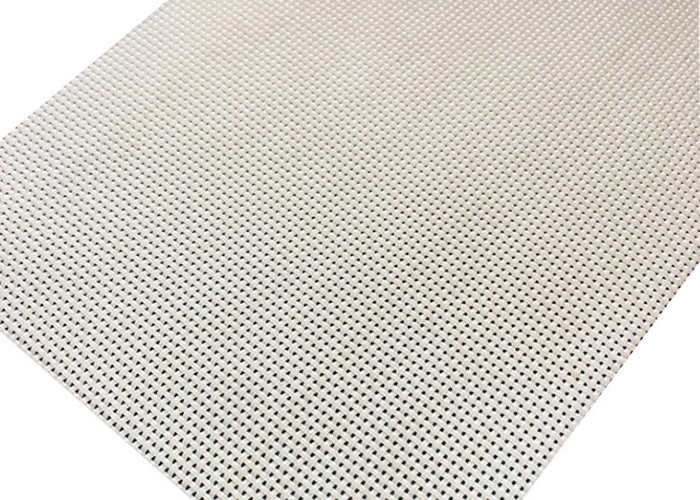

polyester Filter Press Fabric belt for wastewater treatment
Product description:
Polyester spiral press-filter fabric is made of polyester spiral
dryer fabric which is filled with stuff to reduce the air
permeability and intensive the opening ,hence to reduce the
material loss from the mesh opening
Applications:
1. Polyester press-filter fabric for netting belt coal-washer
Polyester spiral press conveyor belt select 100% polyester
monofilament as raw material
2. Polyester press-filter fabric is made of a polyester spiral
which is filled with stuff to reduce the air permeability and
intensive the opening, hence to reduce the material loss from the
mesh opening
3. Large loop polyester spiral press filter fabric for the conveyor
belt is suitable for high-pressure press-filter washer, horizontal
belt washer, pulp-liquor separator and netting belt coal-washer
4. It also used in all kinds of industries, such as printing and
dying, food, salt industry, pharmacy, environment production,
process hides, shoe-making, clothing, ceramic
5. Polyester spiral press conveyor belt is food dehydration, such
as the fruits and vegetable dewatering
Features:
1. Good air permeability, water permeability
2. Stable property and long work time
3. High strength and density
4. Resistance abrasion and high temperature
5. Low thermal shrinking
6. Easy installation and without trace
Usage:
1. Filtering and separating in the colliery, food,salt and mine
industry
2. Pulp making,Sulplate pulp packing and cardboard pulp
3. Fiberboard plants, Medicine,printing,drying industry as conveyor
belt Pharmacy,environment protection
4. Process hides,shoe-making,clothing,ceramics etc as a conveyor
belt
5. Foodstuffs processing
Specification:
| Type | mm Specification of single loop | mm Monofil diamater | N/cm Strength | mm Thickness | m2kg Weight of mesh | m3/m2h Air permeability |
| Spiral loop monofil | Threading |
| Super loop | 4.8X10 | 0.9 | 1.1 | 2300 | 3.03 | 1.64 | 21000 |
| Large loop | 3.8X7.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.40 | 18000 |
| Medium loop | 3.5X6.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.31 | 16000 |
| Small loop | 3.2X5.2 | 0.5 | 0.8 | 1800 | 1.87 | 0.97 | 15000 |
Packing detail:
1. We always use poly bag for the goods which ship by air, so that
customer can save freight free
2. Wooden case is the best for ocean shipment, because it can
effective avoid the damage during shipping
3. There also have some customer request us to use the carton to
packing their goods
4. We can according to customer's requirements.
